Right-angle planetary geared Lean motors

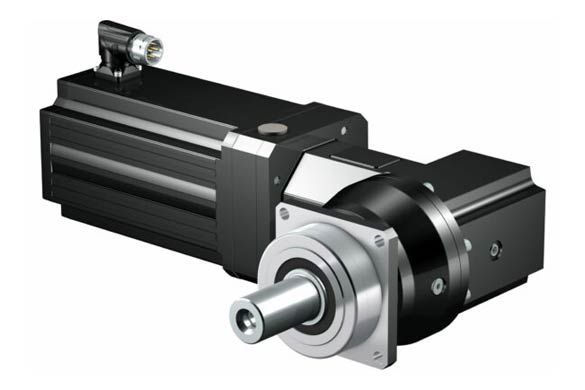

Round the corner with high efficiency: Right-angle planetary geared Lean motors.

An extremely precise right-angle planetary gear unit for small installation spaces – combined with an encoderless, IE5-classified Lean motor.

Our right-angle planetary geared Lean motor – for high demands on profitability, efficiency and service life.

BENEFITS
Right-angle planetary gear unit with Lean motor

If the coaxial design of the motor forms interference contours, a STOBER planetary gear unit combined with a helical bevel geared Lean motor is the ideal solution to meet the highest demands in terms of dynamics, backlash stability and ruggedness.

In total, you get the advantage of a precise right-angle servo gear unit – also for small installation spaces – combined with a highly efficient IE5-class Lean motor.

High precision for small installation spaces

The PKX gear unit series features impressive high precision, high-quality helical gearing and strong backlash stability.

Right-angle planetary geared Lean motors: Round the corner with high efficiency.

When combined with a Lean motor, the result is a very compact, cost-effective drive unit – without any offset and ideal for tight installation spaces.

TECHNICAL DATA
PKXLM SERIES
Right-angle planetary geared Lean motors – Power density
Right-angle planetary geared Lean motors – Price category
€ € € € €
  • Total ratio: 3 – 210
  • Allowed acceleration torque: 17 – 3300 Nm
  • Backlash: 2 – 8.5 arcmin
  • Efficiency: 94 – 96%

Right-angle planetary geared Lean motors from STOBER: Round the corner with high efficiency.

Find your right fit!
FEATURES
PKXLM Series
PKX-Drive feat. Lean-Motor …

APPLICATIONS
Horizontal turntables
Industries and Applications

We get your visions moving – in various industries and markets worldwide.

Using a holistic approach for your specific task, we support you with precisely tailored solutions for drives and automation.

Learn more
DOCUMENTS
The document you are looking for is not listed? Hint: Select "all languages".
TitleVersionIDDateLanguageSize / Type
Catalog Lean Motors LMCatalog Lean Motors LM064430162023 05EN13.91 MB
Catalog STOBER compactCatalog STOBER compact054426552023 03EN9.86 MB
The document you are looking for is not listed? Hint: Select "all languages".
TitleVersionIDDateLanguageSize / Type
Operating manual LM lean motorsOperating manual LM lean motors014430482019 05EN910.05 KB
Operating manual P23KX - P93KX gear units and geared motorsOperating manual P23KX - P93KX gear units and geared motors004433612023 07EN2.54 MB
Safety instructions for synchronous servo motors synchronous servo geared motorsSafety instructions for synchronous servo motors synchronous servo geared motors004431042018 07EN74.66 KB
The document you are looking for is not listed? Hint: Select "all languages".
TitleVersionIDDateLanguageSize / Type

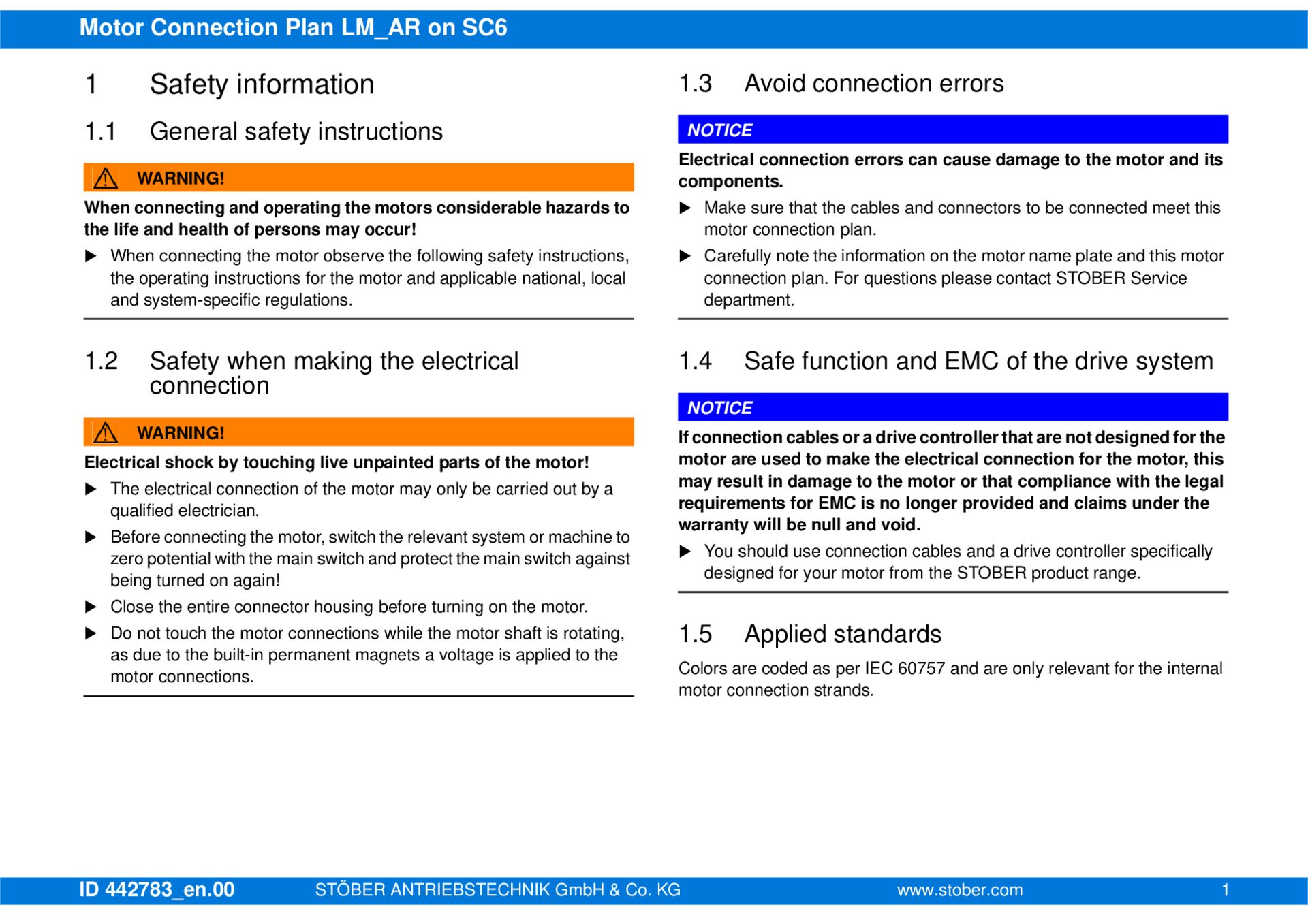

Connection plan LM_AT on SI6Connection plan LM_AT on SI6004430172017 11EN41.51 KB
