Planetary geared Lean motors: The bridge to greater efficiency.

With the new generation of planetary gear units, STOBER has developed drive solutions that are the most compact on the market in terms of versatility!

What are the advantages of the combination with a STOBER Lean motor?
Energy efficiency. Precision. Low weight. Ruggedness. Power.

BENEFITS

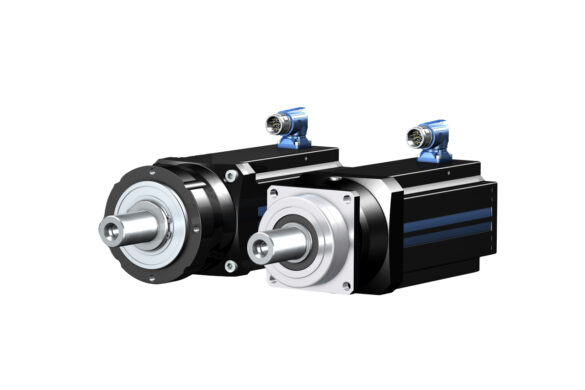

Planetary geared Lean motors – The most impressive feature of the new generation of planetary gear units is its enormous variability. All STOBER motors of the encoderless, very economical LM series can be directly attached in any size you need – without adapters.

Because the geared motor is so compact, you get the benefit of up to 65% increased power density.

And with the lower mass moment of inertia by leaving out a motor adapter, you can also utilize the full dynamics of the drive.

65% more power density

The decisive characteristic of the P series planetary gear unit is the high-quality helical gearing that gives the gear unit smooth operation that is second to none.

Another outstanding property is its extremely high efficiency. Due to the very low frictional torques, this series is ideal for continuous operation and high-speed applications.

The P series combined with our encoderless Lean motor:
The result is a precise, rugged and extremely energy-efficient geared motor with high torsional stiffness and backlash stability.

The PE series of Planetary geared Lean motors features extremely cost-effective planetary gear units for the economy range with high performance.
They also have the high-quality helical gearing typical of STOBER – for low noise development and the best smooth operation.
It’s a unique feature on the market in this price and product class!

PE gear units are the economical alternative to the P series and are ideal for efficient applications in automation and robotics.

PELM: In combination with an IE5-classified STOBER Lean motor, you get an unbeatably cost-effective, compact, economy gear unit. For applications in automation and robotics.

TECHNICAL DATA
PLM SERIES
Planetary geared Lean motors – Power density
Planetary geared Lean motors – Price category
  • Total ratio: 3 – 70
  • Allowed acceleration torque: 13 – 1840 Nm
  • Backlash: 1 – 5 arcmin
  • Efficiency: 95 – 97%

Find your right fit!
PELM SERIES
Planetary geared Lean motors – Power density
Price category
  • Total ratio: 3 – 20
  • Allowed acceleration torque: 13 – 310 Nm
  • Backlash: 8 – 10 arcmin
  • Efficiency: 95 – 97%

Find your right fit!
