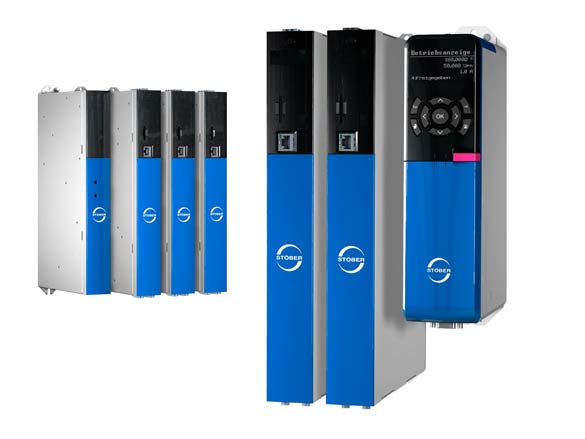

drive controller

High-efficiency drive controllers with safety technology.

Whether for high-performance systems, highly efficient multi-axis applications or compact modules – the 6th generation from STOBER always has the right drive controller on hand.

Benefit from three series that can be combined with each other: SC6 for compact systems, the slim, dynamic SI6 for bayed systems, and the flexible all-rounder SD6.

BENEFITS
Customized for any drive task

Every drive solution has its own unique character. And we have the matching drive controllers!
Whether drive-based or control-based – we have universal and flexible solutions for any kind of motion control.

The shortest possible recovery times from fast set value changes and load jumps are the reason why our drives have such high dynamics.
There is also an option of connecting the drive controllers in a DC link for multi-axis applications, which improves the energy footprint of the entire system.

And speaking of energy, all STOBER drive controllers comply with energy efficiency class IE2 in accordance with EN 61800-9-2.


SC6: The innovative solution for a wide range of system designs

The youngest in the series: The stand-alone SC6 drive controller. Due to its integrated power supply and slim design, it enables cost-effective application concepts.

The SC6 series is ideal for combination with the innovative STOBER Lean motor – for example, for energy-efficient transport systems. Another benefit is that the Lean motor and SC6 run completely without an encoder!


SI6: The slim one for multi-axis drive systems

The most striking feature is its extremely compact design! With a width of only 45 mm, the SI6 requires extremely little space in the control cabinet.

Each SI6 is connected to a central PS6 supply module. Additional fuses and cabling for each individual axis are not required. This reduces the space and costs.

The STOBER SI6 drive controller also offers a lot for acceleration: Together with an EZ series synchronous servo motor, it can go from 0 to 3000 rpm in 10 ms.


SD6: The high-performer for customized solutions

Controlling servo axes precisely and quickly is its game. Due to its high computing power, the SD6 recalculates the position, speed and torque control of the servo axes every 62.5 μs. This enables extraordinarily high dynamics and precision for the drives with very short recovery times and also fast reactions to set value changes and load jumps.

TECHNICAL DATA
SC6 SERIES
Power density:
Price category:
$ $ $ $ $
  • Nominal output current (4 kHz): 4.5 – 19 A
  • Max. output current (4 kHz): 9.5 – 39.9 A
  • Nominal output current (8 kHz): 4 – 15 A
  • Max. output current (8 kHz): 10 – 37.5 A

Find your right fit!
SI6 SERIES
Power density:
Price category:
$ $ $ $ $
  • Nominal output current (4 kHz): 5 – 50 A
  • Max. output current (4 kHz): 10.5 – 105 A
  • Nominal output current (8 kHz): 4.5 – 40 A
  • Max. output current (8 kHz): 11.3 – 100 A

Find your right fit!
SD6 SERIES
Power density:
Price category:
$ $ $ $ $
  • Nominal output current (4 kHz): 2.3 – 85 A
  • Max. output current (4 kHz): 4.2 – 153 A
  • Nominal output current (8 kHz): 1.7 – 60 A
  • Max. output current (8 kHz): 4.3 – 150 A

Find your right fit!
FEATURES
SC6 SERIES
  • Operating motors:
    • Lean motors of the LM series
    • Synchronous servo motors of the EZ .
    • Asynchronous motors of the IE3D series
  • Encoder interfaces:
    • EnDat® 3
    • EnDat® 2.1/2.2 digital
    • Incremental
    • SSI
    • Resolver
    • Pulse/direction signals
  • Controllable brake: 24 VDCbrake
  • Fieldbus connection: Integrated EtherCAT® or PROFINET® communication
  • Safety technology: STO via terminals or STO and SS1 via FSoE: SIL 3, PL e (Cat. 4)
  • Commissioning: All functions to use the drive controller efficiently are provided by the DriveControlSuite DS6 project planning and commissioning software; the program uses wizards to guide you step by step through the entire project planning and parameterization process
  • Special features:
    • One Cable Solution (OCS)
    • Automatic motor parameterization via the electronic motor nameplate
    • Energy supply via a flexible Quick DC-Link connection for multi-axis applications
    • Single-ended nominal power consumption on double-axis controllers for operation of motors with different power
    • Cycle times from 250 µs on up
  • Marks and test symbols: CE, UL, cUL (CSA-UL)

SI6 SERIES
  • Operating motors:
    • Lean motors of the LM series
    • Synchronous servo motors of the EZ .
    • Asynchronous motors of the IE3D series
  • Encoder interfaces:
    • EnDat® 3
    • EnDat® 2.1/2.2 digital
    • Incremental
    • SSI
    • Resolver
    • Pulse/direction signals
  • Controllable brake: 24 VDC brake
  • Fieldbus connection: Integrated EtherCAT® or PROFINET® communication
  • Safety technology: STO via terminals or STO and SS1 via FSoE: SIL 3, PL e (Cat. 4)
  • Commissioning: All functions to use the drive controller efficiently are provided by the DriveControlSuite DS6 project planning and commissioning software; the program uses wizards to guide you step by step through the entire project planning and parameterization process
  • Special features:
    • One Cable Solution (OCS)
    • Automatic motor parameterization via the electronic motor nameplate
    • Energy supply via a flexible Quick DC-Link connection for multi-axis applications
    • Single-ended nominal power consumption on double-axis controllers for operation of motors with different power
    • Cycle times from 250 µs on up
  • Marks and test symbols: CE, UL, cUL (CSA-UL)

SD6 SERIES
  • Operating motors:
    • Synchronous servo motors of the EZ .
    • Asynchronous motors of the IE3D series
  • Encoder interfaces:
    • EnDat® 2.1/2.2 digital
    • Incremental
    • SSI
    • Resolver (optional)
    • Pulse/direction signals (optional)
    • EnDat® 2.1 sin/cos (optional)
    • sin/cos (optional)
  • Controllable brake and integrated brake management:
    • 24 VDCbrake
    • Brake management with cyclic brake test and brake bed-in functions
  • Fieldbus connection: Integrated EtherCAT®, PROFINET® or CANopen® communication
  • Safety technology: Safe Torque Off (STO) as standard, optional extended safety technology (SS1, SS2, SLS …): SIL 3, PL e (Cat. 4)
  • Commissioning: All functions to use the drive controller efficiently are provided by the DriveControlSuite DS6 project planning and commissioning software; the program uses wizards to guide you step by step through the entire project planning and parameterization process
  • Special features:
    • Isochronic system bus (IGB) for parameterization and multi-axis applications
    • Automatic motor parameterization via the electronic motor nameplate
    • Energy supply via a flexible Quick DC-Link connection for multi-axis applications
    • Brake chopper and line filter
    • Digital and analog inputs and outputs as an option
    • Energy supply through direct power feed-in
    • Convenient operating unit consisting of graphical display and keys
    • Paramodul removable data storage for commissioning and service
  • Marks and test symbols: CE, UL, cUL (CSA-UL)

APPLICATIONS
Portal milling
Industries and Applications

We get your visions moving – in various industries and markets worldwide.

Using a holistic approach for your specific task, we support you with precisely tailored solutions for drives and automation.

Learn more
Horizontal machining units
Industries and Applications

We get your visions moving – in various industries and markets worldwide.

Using a holistic approach for your specific task, we support you with precisely tailored solutions for drives and automation.

Learn more
Pick and place
Industries and Applications

We get your visions moving – in various industries and markets worldwide.

Using a holistic approach for your specific task, we support you with precisely tailored solutions for drives and automation.

Learn more
Laser cutting
Industries and Applications

We get your visions moving – in various industries and markets worldwide.

Using a holistic approach for your specific task, we support you with precisely tailored solutions for drives and automation.

Learn more
Tube bending
Industries and Applications

We get your visions moving – in various industries and markets worldwide.

Using a holistic approach for your specific task, we support you with precisely tailored solutions for drives and automation.

Learn more
Sheet metal bending
Industries and Applications

We get your visions moving – in various industries and markets worldwide.

Using a holistic approach for your specific task, we support you with precisely tailored solutions for drives and automation.

Learn more
Filling
Industries and Applications

We get your visions moving – in various industries and markets worldwide.

Using a holistic approach for your specific task, we support you with precisely tailored solutions for drives and automation.

Learn more
Cartoning machines
Industries and Applications

We get your visions moving – in various industries and markets worldwide.

Using a holistic approach for your specific task, we support you with precisely tailored solutions for drives and automation.

Learn more
Tripods
Industries and Applications

We get your visions moving – in various industries and markets worldwide.

Using a holistic approach for your specific task, we support you with precisely tailored solutions for drives and automation.

Learn more
7th axis
Industries and Applications

We get your visions moving – in various industries and markets worldwide.

Using a holistic approach for your specific task, we support you with precisely tailored solutions for drives and automation.

Learn more
Storage and retrieval machines
Industries and Applications

We get your visions moving – in various industries and markets worldwide.

Using a holistic approach for your specific task, we support you with precisely tailored solutions for drives and automation.

Learn more
Extrusion
Industries and Applications

We get your visions moving – in various industries and markets worldwide.

Using a holistic approach for your specific task, we support you with precisely tailored solutions for drives and automation.

Learn more
Vertical turntables
Industries and Applications

We get your visions moving – in various industries and markets worldwide.

Using a holistic approach for your specific task, we support you with precisely tailored solutions for drives and automation.

Learn more
Horizontal turntables
Industries and Applications

We get your visions moving – in various industries and markets worldwide.

Using a holistic approach for your specific task, we support you with precisely tailored solutions for drives and automation.

Learn more
DOCUMENTS
The document you are looking for is not listed? Hint: Select "all languages".
TitleVersionIDDateLanguageSize / Type
Catalog Lean Motors LMCatalog Lean Motors LM064430162023 05EN13.91 MB
Catalog Synchronous servo geared motors with redundant brakeCatalog Synchronous servo geared motors with redundant brake014433112023 04EN18.29 MB
Catalog STOBER compactCatalog STOBER compact054426552023 03EN9.86 MB
Catalog Asynchronous Geared Motors IE3Catalog Asynchronous Geared Motors IE3034431362022 11EN17.16 MB
Catalog Drives and automationCatalog Drives and automation114427112022 08EN14.03 MB
Flyer Better safe than sorry SD6 SE6 Flyer Better safe than sorry SD6 SE6 004431142018 10EN378.88 KB
The document you are looking for is not listed? Hint: Select "all languages".
TitleVersionIDDateLanguageSize / Type
Supplement documentation SD6Supplement documentation SD6014432762024 01EN86.95 KB
Supplement documentation SC6 SI6Supplement documentation SC6 SI6034432512024 01EN153.15 KB
White paper Energy managementWhite paper Energy management004433192023 01EN1.29 MB
The document you are looking for is not listed? Hint: Select "all languages".
TitleVersionIDDateLanguageSize / Type
Manual SC6 drive controllerManual SC6 drive controller084427902024 02EN7.43 MB

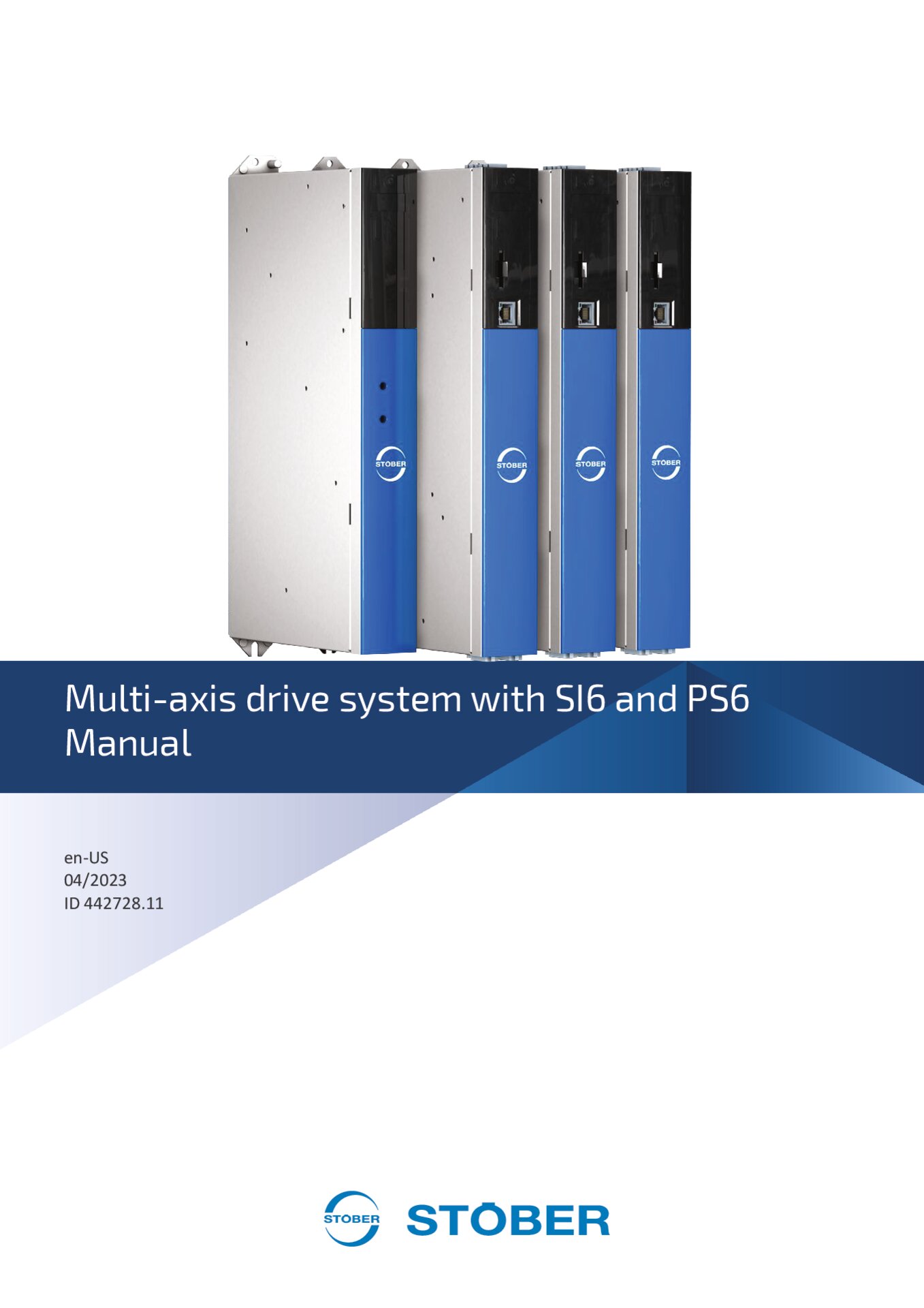

Manual multi-axis drive system with SI6 and PS6Manual multi-axis drive system with SI6 and PS6124427282024 02EN12.25 MB
Manual SD6 drive controllerManual SD6 drive controller124424262023 01EN22.63 MB
The document you are looking for is not listed? Hint: Select "all languages".
TitleVersionIDDateLanguageSize / Type
EU declaration of conformity SD6EU declaration of conformity SD6044425352023 07EN218.38 KB
TÜV test certificate SD6 drive controllerTÜV test certificate SD6 drive controllerTUEV2023 05EN368.73 KB
EC-type examination certificate SD6EC-type examination certificate SD6BMPB2023 05EN285.03 KB
UKCA declaration of conformity SC6 SI6 PS6UKCA declaration of conformity SC6 SI6 PS6004433142023 02EN323.92 KB
EC type-examination certificate SC6 SI6EC type-examination certificate SC6 SI6BMPB2021 11EN197.92 KB
EU declaration of conformity SC6 SI6EU declaration of conformity SC6 SI6014431062022 01EN234.63 KB
cULus certificate of compliance SC6 size 0 1 and 2cULus certificate of compliance SC6 size 0 1 and 2cULus2021 06EN189.20 KB
cULus certificate of compliance SI6 PS6cULus certificate of compliance SI6 PS6cULus2021 12EN292.58 KB
cULus certificate of compliance SD6 size 0 1 and 2cULus certificate of compliance SD6 size 0 1 and 2cULus2017 10EN494.56 KB
cULus certificate of compliance MDS 5000 SDS 5000 SD6 size 3cULus certificate of compliance MDS 5000 SDS 5000 SD6 size 3cULus2017 12EN198.08 KB
The document you are looking for is not listed? Hint: Select "all languages".
TitleVersionIDDateLanguageSize / Type
Setup DriveControlSuite DS6 V 6.5-LSetup DriveControlSuite DS6 V 6.5-LV 6.5-L2024 03EN246.88 MB
Setup DriveControlSuite DS6 V 6.5-K SP1Setup DriveControlSuite DS6 V 6.5-K SP1V 6.5-K SP12023 11EN244.11 MB
Setup DriveControlSuite DS6 V 6.5-J SP3Setup DriveControlSuite DS6 V 6.5-J SP3V 6.5-J SP32023 09EN241.21 MB
Version history DriveControlSuite DS6Version history DriveControlSuite DS6V 6.5-L4432402024 02EN1.73 MB
Release notes DriveControlSuite DS6Release notes DriveControlSuite DS6V 6.5-L4432382024 02EN1.11 MB
DriveControlSuite Script mode ExamplesDriveControlSuite Script mode Examples012019 10EN6.94 MB
The document you are looking for is not listed? Hint: Select "all languages".
TitleVersionIDDateLanguageSize / Type
No results were found.
SERVICES
Technology Consulting

Take advantage of the expertise of our application engineers in the Sales Centers or contact our first level support.

OPEN
Please contact us!
SERVOsoft®

With SERVOsoft®, you have a tool at your fingertips that lets you design your drive systems with precise scaling in just a few steps. Electrical as well as mechanical design, and simple and fast at the same time.

OPEN
STOBER Configurator

With the intuitive STOBER product configurator, you can filter, compare, save and share the right drive solutions with ease.

OPEN
STOBER CAD

Are you looking for CAD data? With the STOBER CAD tool, the drawings you need are ready for download in just a few clicks.

OPEN
Service Network

STOBER is present in over 40 countries worldwide with 12 locations and 80 service partners. No matter where, no matter when, we’re always at your service and on the move!

OPEN
Replacement & Repair

Do you need competent help with replacement parts, replacement drives, repairs and retrofitting? Feel free to contact us! We also offer a 24-hour hotline for urgent cases.

OPEN
24-hour emergency number for urgent cases.
We are here for you.

Made in Germany. Since 1934.

STOBER Product ID.

Do you need operating and assembly instructions, replacement part lists or notes on technical features of our products?

Thanks to the STOBER Product ID, you can get the information you need quickly and easily.

This might also interest you
