Do you want to add terminal modules to the drive controller? How about taking advantage of DC link connection? Would you like to reduce bothersome faults in the network? What about operating a linear motor?

Find the extra piece you are looking for and round off your STOBER solution perfectly!

BENEFITS
The perfect supplement

The perfect way to round it off

In a STOBER system, the details also make the difference. Discover electronic accessories that make your individual drive solution an easy fit.

Communication modules

We speak your language

Various communication modules to connect field buses such as EtherCAT®, PROFINET®, PROFIBUS-DP® or CANopen® to all 6th generation STOBER drive controllers and all series of the 5th generation STOBER inverter generation. For standard-compliant data communication.

Terminal modules

The attached I and O

For connecting analog and binary signals and also encoders, we offer a wide variety of terminal modules that can be integrated into all 5th and 6th generation series.

DC link connections

Be smart and save with Quick DC-Link

All series in the 6th generation of STOBER drive controllers have the option of a DC link connection.
This technology makes it possible to use the regenerative production of energy from one drive as the motor energy by another drive.

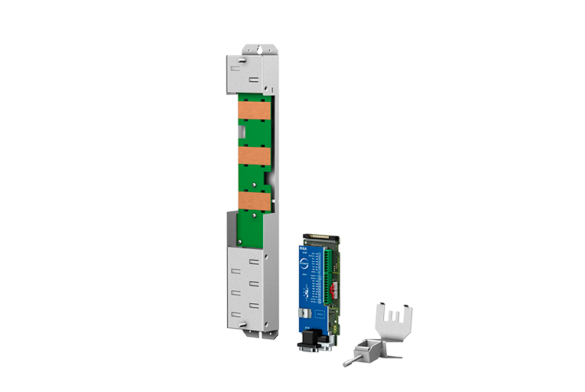

To able to set up a safe and efficient rail connection for DC link connection, we have developed the patented Quick DC-Link rear section module that connects the DC links of the individual drive controllers via copper rails.

The rails can be attached without any tools using quick fastening clamps.

Braking resistors

The energy converters

When a motor brakes, the kinetic energy of the drive system is fed back to the DC link capacitors of the drive controller.

However, the capacitance of these capacitors is limited to a defined maximum voltage.

From a certain voltage level, an integrated brake chopper connects the braking resistor as a consumer. This absorbs the existing braking energy, the voltage drops and the kinetic energy is mostly converted to heat.

In addition to the various drive controllers, STOBER offers the associated braking resistors in a wide range of designs and performance classes.

Chokes

For a longer line

We naturally also have ready-made power and output chokes that match your particular field of application.

Power chokes are inductive metal wire coils that reduce unwanted harmonics or distortion in the power system.
They also relieve the DC link capacitance of the drive controllers.

Output chokes reduce the charging current peaks caused by clock signals and line capacities. They make it possible to use long motor cables, increase the motor service life and reduce harmonic currents.

EMC shielding plates

Perfectly shielded

EMC shield plates for shield connection of the power cable for the SD6 drive controller and the SDS 5000 inverter. The plates can be attached to the particular base housing.

If necessary, you can also connect the cable shield of the braking resistor and DC link connection to the shroud.

Encoder adapter boxes

When things get linear

Are you operating a linear motor?
This is no problem for the LA6A00 interface adapter for differential TTL incremental signals and single-ended TTL hall sensor signals.

Encoder adapter box is used for converting and transferring TTL and Hall sensor signals from synchronous linear motors to the SD6 drive controller.

A variable, internal interface converts the input signals appropriately for the STOBER standard interfaces.

Do you have any further questions or requests about linear motors? No problem. Please contact us.

HTL-to-TTL adapters

The highest signal flexibility possible

Our HT6 adapter for the SC6 and SI6 series drive controllers is used for the level conversion of HTL to TTL signals or for connecting an HTL differential incremental encoder.

Encoder battery module

Well buffered

The AES module (Absolute Encoder Support) buffers the supply voltage for EnDat® 2.2 digital inductive encoders with a battery-buffered multi-turn output stage, such as EBI1135 or EBI135.

This prevents the supply voltage in the circuit from dropping due to short-term current peaks.

Available for 6th generation drive controllers and the SDS 5000 servo inverter.

Removable data storage

Quick commissioning in series

Super practical: The plug-in Paramodul as a storage medium with an integrated microSD card.

For fast series commissioning through simple copying and for uncomplicated service if a device needs to be replaced.

It saves time and spares your nerves.

The Paramoduls are available for the SD6 drive controller and the SDS 5000 servo inverter.

PS6 supply modules

Customized energy use

The SI6 drive controllers are connected to a central PS6 supply module.

There is no need for decentralized supply modules or fuses and cabling for each axis.

When using double-axis modules, the unused power reserves of one axis can be used for other axes.

It’s a significant reduction in space requirements and costs!
