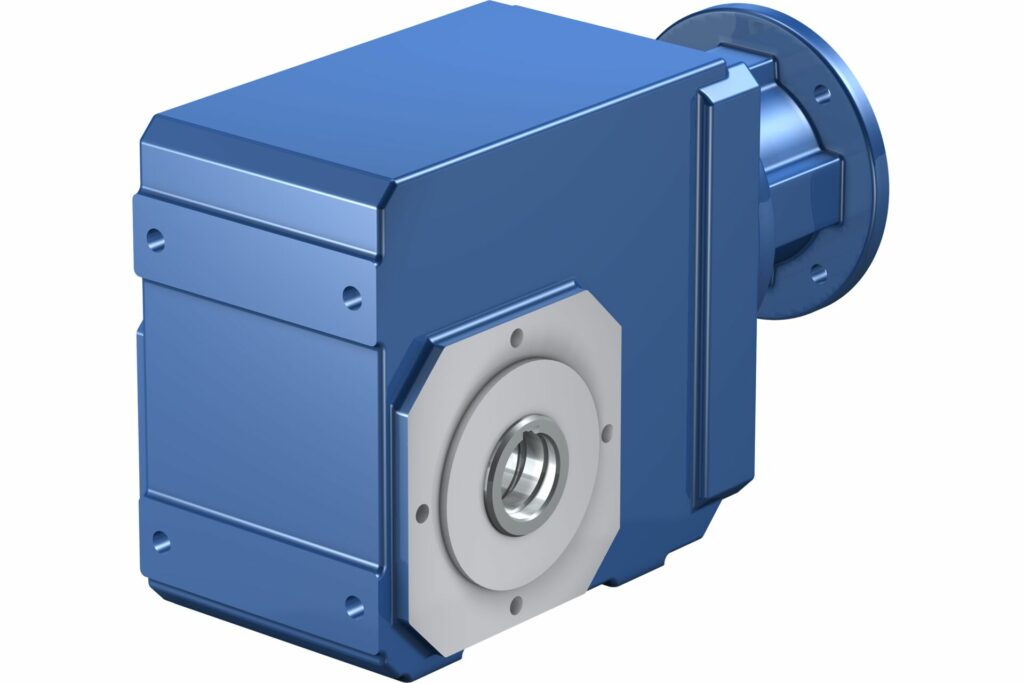

Rugged power transmission variant of STOBER helical bevel gear units with high-quality helical gearing.

Round the corner with the classic model: Power transmission helical bevel gear units.

Do you need a small installation space for the angular transmission of motion and forces? For attachment to an asynchronous motor of your choice?

Our solution: power transmission helical bevel gear units with short adapters!

BENEFITS

STOBER power transmission helical bevel gear units are ideal when high performance, long service life and helical gearing for smooth operation are required.

This series is available in three different classes, so you can adapt it perfectly to the application you need.

K gear units also have an impressive single-cast design and a wide range of housing designs. The torsion-resistant monoblock design also has a favorable impact on the noise emission of the gear units. This is an major advantage for use in continuous operation!

Using a short motor adapter, the helical bevel gear units can be attached to standard or stainless steel motors quickly and easily in accordance with IEC or NEMA-C.

TECHNICAL DATA
Power transmission helical bevel gear units – Power density:
Power transmission helical bevel gear units – Price category:
  • Total ratio: 4 – 381
  • Nominal torque: 41 – 11172 Nm
  • Backlash: 1.5 – 12 arcmin
  • Efficiency: 94 – 97%

Find your right fit!
FEATURES
K SERIES
  • Power transmission helical bevel gear units – Shaft:
    • Solid shaft on both sides
    • Solid shaft with or without key (without for sizes K1 – K4, on request starting at K5)
    • Hollow shaft with keyway or shrink ring
  • Power transmission helical bevel gear units – Housing:
    • Pitch circle diameter with an optional foot, an optional torque arm bracket or a foot and torque arm bracket
    • Round flange with an optional foot
  • Power transmission helical bevel gear units – Backlash: Standard, Class I or Class II
  • Power transmission helical bevel gear units – Mounting position: Any
  • Power transmission helical bevel gear units – Lubricants and maintenance:
    • Mineral lubricant CLP ISO VG 220 or synthetic lubricant CLP HC ISO VG 220
    • Lubricated for life and maintenance-free
  • Recommended motors: Can be attached to all standard steel or stainless steel motors in acc. with IEC or NEMA-C

APPLICATIONS
Conveyor technology
Industries and Applications

We get your visions moving – in various industries and markets worldwide.

Using a holistic approach for your specific task, we support you with precisely tailored solutions for drives and automation.

Learn more
Pump drives
Industries and Applications

We get your visions moving – in various industries and markets worldwide.

Using a holistic approach for your specific task, we support you with precisely tailored solutions for drives and automation.

Learn more
Fans
Industries and Applications

We get your visions moving – in various industries and markets worldwide.

Using a holistic approach for your specific task, we support you with precisely tailored solutions for drives and automation.

Learn more
DOCUMENTS
The document you are looking for is not listed? Hint: Select "all languages".
TitleVersionIDDateLanguageSize / Type
Catalog STOBER compactCatalog STOBER compact054426552023 03EN9.86 MB
The document you are looking for is not listed? Hint: Select "all languages".
TitleVersionIDDateLanguageSize / Type
Operating manual K1 - K10 gear units and geared motorsOperating manual K1 - K10 gear units and geared motors004433642023 07EN3.84 MB
Safety instructions for gear unitsSafety instructions for gear units004431082018 07EN70.76 KB
The document you are looking for is not listed? Hint: Select "all languages".
TitleVersionIDDateLanguageSize / Type
Lubricant fill volumeLubricant fill volume174418712023 10EN2.18 MB
Replacement parts list K1 helical bevel gear unitReplacement parts list K1 helical bevel gear unit004431322018 09EN1.37 MB
Replacement parts list K2 K3 K4 helical bevel gear unitReplacement parts list K2 K3 K4 helical bevel gear unit004431312018 10EN1.63 MB
Replacement parts list K5 helical bevel gear unitReplacement parts list K5 helical bevel gear unit004431282018 10EN1.73 MB
Replacement parts list K6 helical bevel gear unitReplacement parts list K6 helical bevel gear unit004430732018 03EN1.80 MB
Replacement parts list K7 helical bevel gear unitReplacement parts list K7 helical bevel gear unit004430642018 03EN1.86 MB
Replacement parts list K8 helical bevel gear unitReplacement parts list K8 helical bevel gear unit004426922018 03EN1.86 MB
Replacement parts list K9 helical bevel gear unitReplacement parts list K9 helical bevel gear unit014426862018 03EN1.82 MB
Replacement parts list MGS gears with pre-stage in mounting position 5Replacement parts list MGS gears with pre-stage in mounting position 5014414912009 11EN50.87 KB
Replacement parts list helical bevel gear units K1003 K1013 ANFReplacement parts list helical bevel gear units K1003 K1013 ANF044413872010 09EN94.46 KB
Replacement parts list helical bevel gear units K1004 K1014 SN SNG SNGDReplacement parts list helical bevel gear units K1004 K1014 SN SNG SNGD044414052010 09EN108.28 KB
Replacement parts list helical bevel gear units K1004 K1014 SNFReplacement parts list helical bevel gear units K1004 K1014 SNF044414032010 09EN103.64 KB
Replacement parts list helical bevel gear units K1004 K1014 AN ANG ANGDReplacement parts list helical bevel gear units K1004 K1014 AN ANG ANGD044414012010 09EN107.86 KB
Replacement parts list helical bevel gear units K1004 K1014 ANFReplacement parts list helical bevel gear units K1004 K1014 ANF044413992010 09EN101.91 KB
Replacement parts list helical bevel gear units K1004 K1014 VReplacement parts list helical bevel gear units K1004 K1014 V044413972010 09EN98.02 KB
Replacement parts list helical bevel gear units K1003 K1013 SN SNG SNGDReplacement parts list helical bevel gear units K1003 K1013 SN SNG SNGD044413932010 09EN100.97 KB
Replacement parts list helical bevel gear units K1003 K1013 SNFReplacement parts list helical bevel gear units K1003 K1013 SNF044413912010 09EN95.84 KB
Replacement parts list helical bevel gear units K1003 K1013 AN ANG ANGDReplacement parts list helical bevel gear units K1003 K1013 AN ANG ANGD044413892010 09EN99.85 KB
Replacement parts list helical bevel gear units K1003 K1013 VReplacement parts list helical bevel gear units K1003 K1013 V044413852010 09EN90.73 KB
The document you are looking for is not listed? Hint: Select "all languages".
TitleVersionIDDateLanguageSize / Type
UK declaration of incorporation gear unitsUK declaration of incorporation gear units004432992021 10EN74.12 KB
Declaration of Incorporation gear unitsDeclaration of Incorporation gear units004427182015 04EN48.83 KB
The document you are looking for is not listed? Hint: Select "all languages".
TitleVersionIDDateLanguageSize / Type
No results were found.
