Asynchronous helical bevel geared motors: Rugged without compromises

Rugged without compromises: Asynchronous helical bevel geared motors.

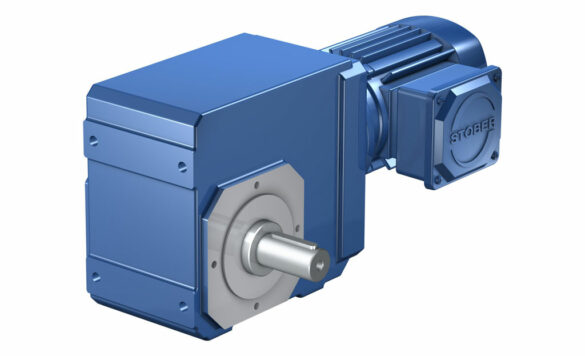

The helical bevel gear unit and asynchronous motors are directly attached to form a compact unit. It features convenient installation dimensions, high efficiency and a good energy balance thanks to the IE3-class asynchronous motor.

Get the benefits and savings you need with this economically attractive combination of a first-class STOBER helical bevel gear unit and an extremely rugged industrial motor.

BENEFITS

Asynchronous helical bevel geared motors – this coupling-free combination of a K series gear unit and an asynchronous motor reduces the space requirements and rotating masses and also lowers the total weight.

All STOBER asynchronous helical bevel geared motors feature quality helical gearing that guarantees exceptionally smooth operation. It’s an absolute plus for use in continuous operation. As a result, this very rugged series is especially well-suited for use in conveyor systems, pump drives and fans.

TECHNICAL DATA
Asynchronous helical bevel geared motors – Power density
Asynchronous helical bevel geared motors – Price category
  • Total ratio: 4 – 381
  • Nominal power: 0.12 – 45 kW
  • Nominal torque: 6.5 – 14123 Nm
  • Efficiency: 94 – 97%
