Inverter
Powerful drive controllers with extensive features.

Rigorously practical:
Servo inverters and frequency inverters.

Our classics!

POSIDYN® SDS 5000 – the particularly powerful servo inverter with extensive features and an excellent price-performance ratio.

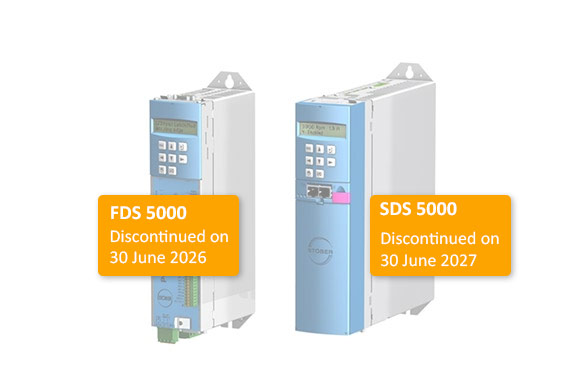

The alternative – the POSIDRIVE® FDS 5000 frequency inverter, with a lot of potential for feed and positioning drives.

BENEFITS
Power electronics at its best: The 5th generation STOBER inverter

Our proven classics: The 5th generation inverters!

POSIDYN® SDS 5000 is a powerful inverter specially designed for demanding tasks in the field of servo technology.

The POSIDRIVE® FDS 5000 frequency inverter also offers great potential for innovation in feed drives and positioning drives for asynchronous servo axes.

You also have an advantage in terms of energy. All STOBER inverters comply with energy efficiency class IE2 in accordance with EN 61800-9-2.

Power electronics at its best: The 5th generation STOBER inverter

The POSIDYN® SDS 5000 servo inverter is a particularly powerful member of the 5th generation.

High dynamics for fully digital servo axes. Remote maintenance for all typical procedures, just as for on-site service, with technical and legal safeguards.

Self-configuring Integrated Bus (IGB) for communication between up to 32 servo inverters.

To name just a few of its outstanding features.

FDS 5000: The straightforward option for asynchronous units

POSIDRIVE® FDS 5000: The purpose-built asynchronous servo axis optimized for asynchronous geared motors.

This frequency inverter scores points with its extremely practical functions for modern positioning and control drives.

It is also comes perfectly equipped for smooth, fast communication with different fieldbus systems.

TECHNICAL DATA
BAUREIHE SDS 5000
Leistungsdichte:
Preisklasse:
  • Ausgangsnennstrom (4 kHz): 2,3 – 85 A
  • Max. Ausgangsstrom (4 kHz): 4,2 – 153 A
  • Ausgangsnennstrom (8 kHz): 1,7 – 60 A
  • Max. Ausgangsstrom (8 kHz): 4,3 – 150 A

Find your right fit!
BAUREIHE FDS 5000
Leistungsdichte:
Preisklasse:
  • Ausgangsnennstrom (4 kHz): 1,3 – 16 A
  • Max. Ausgangsstrom (4 kHz): 2,4 – 28,8 A
  • Ausgangsnennstrom (8 kHz): 1 – 10 A
  • Max. Ausgangsstrom (8 kHz): 2,5 – 25 A

Find your right fit!
FEATURES
SDS 5000 SERIES
  • Encoder interfaces:
    • EnDat® 2.1/2.2 digital
    • Incremental
    • SSI
    • Resolver (optional)
    • Pulse/direction signals (optional)
    • EnDat® 2.1 sin/cos (optional)
  • Controllable brakes and integrated brake management:
    • Up to two 24 VDCbrakes via the optional BRS 5001 brake module
    • The BRS 5001 also includes brake management for both brakes with cyclic brake test and brake bed-in functions
  • Fieldbus connection: Integrated EtherCAT®, PROFINET®, PROFIBUS DP® or CANopen® communication
  • Safety technology: STO and SS1: SIL 3, PL e (Cat. 3)
  • Commissioning: With the help of the POSITool commissioning software, various standard applications can be transferred to the inverter; it is also possible to create new applications or expand existing ones using CFC programming based on IEC 61131-3
  • Special features:
    • Isochronic system bus (IGB) for parameterization and multi-axis applications
    • Automatic motor parameterization via the electronic motor nameplate using EnDat® 2.1/2.2 digital
    • Brake chopper and line filter
    • Digital and analog inputs and outputs (optional)
    • Easy-to-use operating unit featuring a plain-text display and buttons
    • Paramodul removable data storage for commissioning and service
  • Marks and test symbols: CE, UL, cUL (CSA-UL)

FDS 5000 SERIES
  • Operable motors: Asynchronous motors of the IE3D series
  • Encoder interfaces: Incremental or pulse/direction signals
  • Fieldbus connection: Integrated EtherCAT®, PROFINET®, PROFIBUS DP® or CANopen® communication
  • Safety technology: STO and SS1: SIL 3, PL e (Cat. 3)
  • Commissioning: With the help of the POSITool commissioning software, various standard applications can be transferred to the inverter; it is also possible to create new applications or expand existing ones using CFC programming based on IEC 61131-3
  • Special features:
    • Digital and analog inputs and outputs
    • Integrated holding brake control
    • Easy-to-use operating unit featuring a plain-text display and buttons
    • Paramodul removable data storage for commissioning and service
  • Marks and test symbols: CE, UL, cUL (CSA-UL)

APPLICATIONS
Tube bending
Industries and Applications

We get your visions moving – in various industries and markets worldwide.

Using a holistic approach for your specific task, we support you with precisely tailored solutions for drives and automation.

Learn more
Cartoning machines
Industries and Applications

We get your visions moving – in various industries and markets worldwide.

Using a holistic approach for your specific task, we support you with precisely tailored solutions for drives and automation.

Learn more
Extrusion
Industries and Applications

We get your visions moving – in various industries and markets worldwide.

Using a holistic approach for your specific task, we support you with precisely tailored solutions for drives and automation.

Learn more
Vertical turntables
Industries and Applications

We get your visions moving – in various industries and markets worldwide.

Using a holistic approach for your specific task, we support you with precisely tailored solutions for drives and automation.

Learn more
Horizontal turntables
Industries and Applications

We get your visions moving – in various industries and markets worldwide.

Using a holistic approach for your specific task, we support you with precisely tailored solutions for drives and automation.

Learn more
DOCUMENTS
TitleVersionIDDateLanguageSize / Type
Catalog Asynchronous Geared Motors IE3 024431362020 07EN11.88 MB [PDF]
Brochure Technology for Drive Systems and Automation - new generation planetary gear units pocket 00K4431642020 04EN1.96 MB [PDF]
Brochure Application Training STOBER Electronics pocket 01443003EN772.92 KB [PDF]
Catalog STOBER compact 034426552021 06EN8.33 MB [PDF]
TitleVersionIDDateLanguageSize / Type
Accessories - Commissioning instruction EMC Shield Plate and Brake Module for 24 V Brake 054417762018 03EN1.84 MB [PDF]
Commissioning instruction FDS 5000 084422932020 08EN2.00 MB [PDF]
Commissioning instruction MDS 5000 094422972020 08EN2.79 MB [PDF]
Commissioning instruction SDS 5000 084423012020 08EN3.07 MB [PDF]
Accessories - Commissioning instruction I_O Terminal Module LEA 5000 034418862012 04EN219.98 KB [PDF]
Accessories - Commissioning instruction I_O Terminal Module 054417582013 08EN627.87 KB [PDF]
Accessories - Commissioning instruction Fieldbus Module CAN 5000 _ DP 5000 034421482012 04EN415.53 KB [PDF]
Accessories - Commissioning instruction Fieldbus Module ECS 5000 _ PN 5000 034421502012 04EN341.75 KB [PDF]
Accessories - Commissioning instruction Bottom Brake Resistor RB 5000 034418062012 04EN245.78 KB [PDF]
Assembly instructions Motor adapter with axially plug-in coupling 084412472011 02EN85.98 KB [PDF]
Assembly instructions Lubrication connections of gear units C K S 114416312017 11EN95.84 KB [PDF]
TitleVersionIDDateLanguageSize / Type

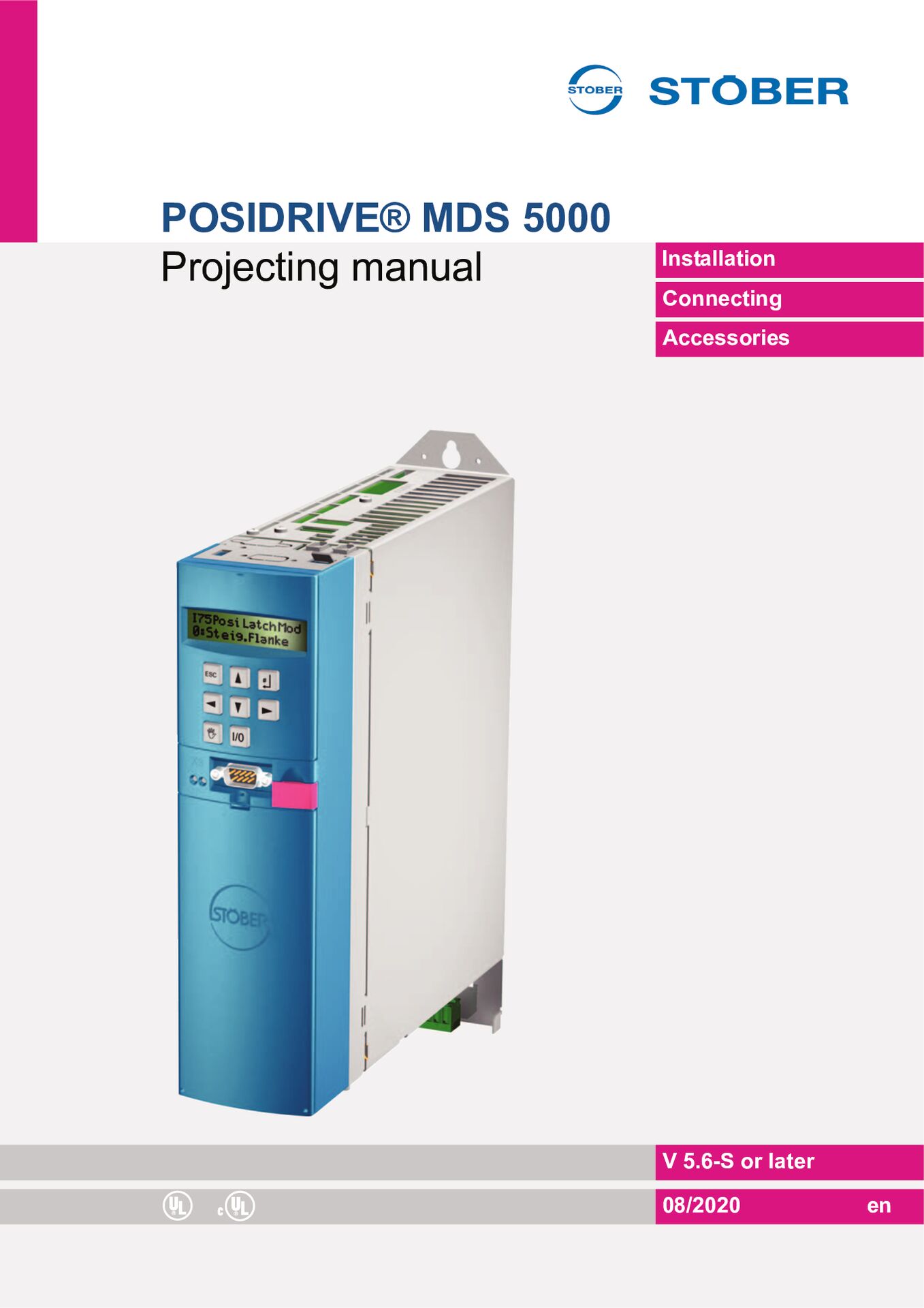

Projecting manual MDS 5000 074422732015 03EN4.48 MB [PDF]
Projecting manual MDS 5000 from HW 200 104422732020 08EN6.80 MB [PDF]
Operating manual MDS 5000 064422852016 08EN2.06 MB [PDF]
Projecting manual SDS 5000 074422772015 03EN4.55 MB [PDF]
Projecting manual SDS 5000 from HW 200 094422772020 08EN5.10 MB [PDF]
Operating manual SDS 5000 064422892016 08EN3.35 MB [PDF]
Operating manual CANopen 5th generation 064416862013 09EN1009.43 KB [PDF]
Operating manual fieldbus EtherCAT 5th generation 054418962013 09EN2.17 MB [PDF]
Operating manual PROFIBUS 5th generation 044416852013 09EN1.00 MB [PDF]
Operating manual PROFIBUS 5th generation 044416872013 09EN1014.28 KB [PDF]
Operating manual USS 044417072013 09EN423.91 KB [PDF]
Operating instructions POSISwitch AX 5000 axle switch for POSIDRIVE MDS 5000 + POSIDYN SDS 5000 044416892013 09EN918.73 KB [PDF]
ASP 5001 operating instructions 074421812017 10EN886.71 KB [PDF]
Application Electronic Cam - 5th generation 044417782013 01EN2.87 MB [PDF]
Application Motion Block Positioning - 5th generation 044417822013 01EN3.10 MB [PDF]
Application Comfort Reference Value - 5th generation 044418432013 08EN3.49 MB [PDF]
Application Fast Reference Value - 5th generation 044417272013 01EN2.15 MB [PDF]
Application Technology Controller - 5th generation 044418232013 01EN2.24 MB [PDF]
Manuals Software Moduls 014416922012 02EN3.04 MB [PDF]
Operating manual Firmware 034424222017 09EN1.16 MB [PDF]
Operating manual POSITool 054422332013 09EN2.88 MB [PDF]
Total parameter list for the 5th generation of STOBER inverters 034423602012 05EN3.05 MB [PDF]
Programming manual POSITool 044416932013 09EN3.40 MB [PDF]
Application Synchronous-_Command Positioning 044417302013 01EN2.99 MB [PDF]
Manual Connection method 024431022021 02EN2.77 MB [PDF]
TitleVersionIDDateLanguageSize / Type
EC type-examination 5th generation - Safe Torque Off and Safe Stopp 1 based on DIN EN ISO 13849-1 and DIN EN 61800-5-2 2016 07EN884.66 KB [PDF]
EU declaration of conformity POSIDRIVE FDS 5000A POSIDRIVE MDS 5000A POSIDYN SDS 5000A 044425412016 08EN566.77 KB [PDF]
cULus certificate of compliance MDS 5000 SDS 5000 size 0 1 and 2 2011 06EN132.98 KB [PDF]
cULus certificate of compliance MDS 5000 SDS 5000 SD6 size 3 2017 12EN190.47 KB [PDF]
Declaration of incorporation 00442718EN39.37 KB [PDF]
TitleVersionIDDateLanguageSize / Type
Field bus EDS CANopen for 5. generation STOBER inverter V 5.42009 04EN208.42 KB [ZIP]
Fieldbus GSD PROFIBUS for the 5th inverter generation V 5.62011 04EN6.10 KB [ZIP]
Fieldbus GSD PROFINET for the 5th inverter generation V 5.62011 04EN10.51 KB [ZIP]
Setup POSITool V 5.7-A V 5.7-A2018 02EN38.05 MB [EXE]
Setup POSITool V 5.7-C V 5.7-C2021 08EN38.13 MB [EXE]
